Field Astronomy Surveying Pdf

The equatorial coordinate system is a celestial coordinate system widely used to specify the positions of celestial objects. The zenith distance can be measured directly. Various methods of observation of varying accuracies can be used in practice to suit the accuracy of the astronomical quantity desired. These stars are called planets from the Greek word for a wanderer.

Popular Posts

You just clipped your first slide! The cotangent of the azimuth is negative as shown above. Scholars believe, and we concur, that this work is important enough to be preserved, reproduced, and made generally available to the public. Time altitude observations on the Star Betelgeuse No.

Surveying - S. K. Duggal - Google Books

The first is the system for defining a terrestrial position and the second that for defining a celestial position. This requires the Four Parts Formula. Determination of vertical circle index correction should be carried out. This is obtained from the relationship of section A. This great circle is known as the Ecliptic.

Field Astronomy for Azimuth Determinations

For this reason, it is better to develop a system, which copes automatically with all the possible variations of the spherical triangle, encountered in astronomy. In astronomy and celestial navigation, the hour angle is one of the coordinates used in the equatorial coordinate system to give the direction of a point on the celestial sphere. However, surveying is a dynamic profession with each new development just one step ahead of the next, and updating became critical.

It should be noticed that the Four Parts and the Sine Formulae transform back into themselves when this process of changing an angle for a side, and vice versa, is carried out. Theoretical considerations, of which the mair. Northern celestial latitudes are labelled N or North and southern ones S or South.

Account Options

Both the northern and the southern astronomical triangles are shown and also the situations of star west and of star east of the meridian. Constellation boundaries have been adopted and agreed upon.

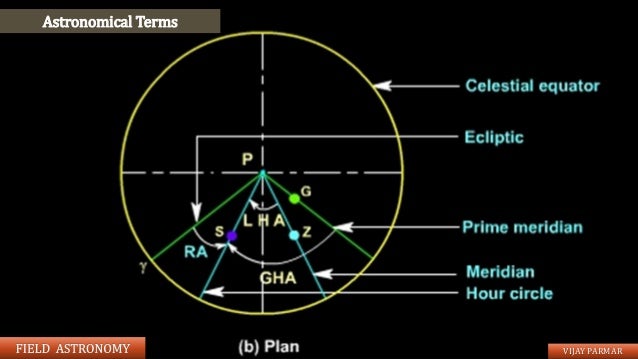

Counting wheels, on which the numerical values of the time readings are marked are driven by this motor. The alidade or vertical circle bubble is carefully trimmed to centre and the vertical circle then read. The line of intersection of an infinite plane passing through the centre of the earth and perpendicular to the line joining celestial poles with the celestial sphere. The upper branch of this local meridian goes from one pole through the zenith of p to the other pole, while its lower branch likewise goes from one pole through the nadir of P to the other one.

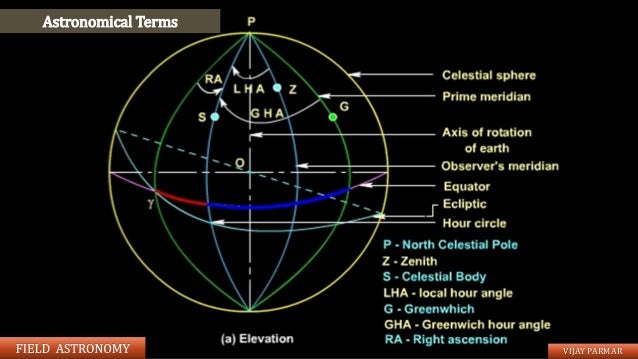

All lie in a fairly narrow belt in the sky. The first surface is the topographical one, namely that of the actual earth, because the survey is carried out in order to provide information about this surface. This point is known as the First Point of Aries, and is indicated by the zodiacal sYmbol of the ram's horns. The first method will be dealt with, but the second, which is nowadays not used in practice, will not be pursued further. One can appreciate that no hairsplitting accuracy is needed in laying out, for the devout Mohammedan, a line pointing to Mecca so that he may make his obeisances in the correct direction.

This is given in the appendix, where the theory has been developed for a power series for the solution of both latitude and azimuth see section A. Input data, such as the station position, the star coordinates and the like must be carefully checked and the corrections of the input must be monitored. Handbook of Cost Data for Contractors and Engineers. At this point, some theodolites require the horizontal circle to be set so that its reading is the same as the precomputed azimuth value. The first, the second and the fourth relationships are obtained by differentiation of the Four Parts, the Cosine and the Sine Formula respectively see section A.

About this book Introduction The first edition of The Surveying Handbook, although a ground breaker, was widely accepted. He therefore changes his elevated pole on crossing the equator. The meridian, which passes through Greenwich, has been selected as the Prime Meridian. If the earth's Equatorial Plane is extended out to cut the celestial sphere, it will intersect this along a great circle called the celestial Equator, which lies mid-way between the Celestial Poles. In times gone past, these relationships were not accurately known.

It should be noted that a the clock used was a Heuer splithand stopwatch. This observation is made very often when this star is not at or near transit.

All planes parallel to the equatorial one will cut the celestial sphere in small circles, called Parallels of Declination. Station T and sighted towards Trig. If some time later these observations are repeated it may be found that a slightly different value of the index correction results. In all these, it is necessary to have a value for the unknown latitude sought before solution can be achieved. If the axis of rotation of the earth is imagined to be extended infinitely in both directions, the points at which it meets the celestial sphere are known as poles.

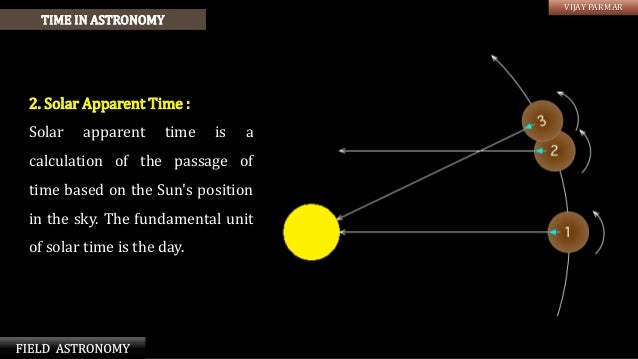

At about three minutes before the time predicted for these settings, the telescope is directed towards the known star and the star caught in the field of view of the telescope. The ideal method is to have the field book handed to a computer, audi a3 manual pdf free who obtains any additional data required and then carries out the computation. Field astronomy - Advanced surveying Civil Engineering.

In it are linked the three systems of altitude and azimuth, right ascension and declination as well as latitude and longitude. At such latitudes, the two pole stars are difficult to see because the line of sight must traverse a long path through the dense atmosphere layers, close to the earth's surface. It is most important that this should be done if the horizontal crosshair is seen to be out of the horizontal. This gives the information that the kilometre radius of the earth's orbit subtends, at this star, the minute angle of three quarters of a second of arc.

SpringerLink

The bubble is tben trimmed by means of the bubble adjusting screw, so that the bubble ends coincide with each other in the viewer. This quantity is defined as the amount to be added algebraically to a clock reading to obtain the Greenwich time.

The symbols used for celestial longitude will be A and for celestial latitude S. Your email address will not be published. If the relative rates are reversed, the vertical hair is set ahead of the star and tracking is carried out by means of the vertical slow motion screw until the star is bisected by both crosshairs.
